Cast Iron Welding

Cast iron welding is a critical skill for anyone working with tough, heavy-duty metal components. We've seen cast iron in everything from engine blocks to pet feeder frames. And when it cracks, you need to know how to fix it right.

After years in the industry and extensively testing welding processes ourselves, we've learned that cast iron is completely weldable with the right prep, tools, and technique. Whether you're restoring old gear or repairing something you thought was junked, learning to weld cast iron can save your projects and your wallet.

What this article covers:

• What Is Cast Iron?
• Why Cast Iron Is Hard to Weld
• Choosing the Right Cast Iron Welding Process
• Which Filler Materials & Electrodes to Use for Cast Iron Welding
• Essential Prep Steps for Cast Iron Welding
• How to Do Cast Iron Welding

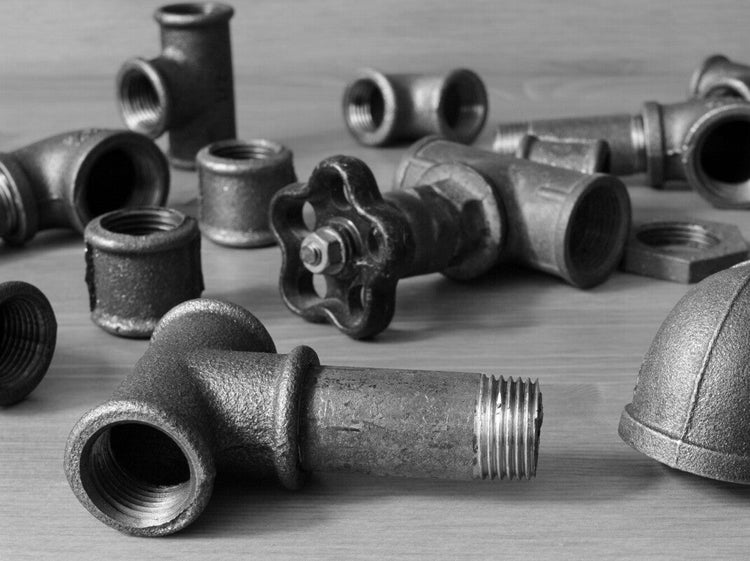

What Is Cast Iron?

Cast iron is an iron-carbon alloy containing roughly 2–4% carbon and 1–3% silicon. It's produced by melting these elements, pouring them into molds, and allowing them to cool slowly.

This composition gives cast iron its signature strength, rigidity, and heat resistance, ideal for engine components, cookware, pipes, and artistic castings.

Types of Cast Iron

Each type of cast iron behaves differently under heat, and their weldability varies widely:

• Gray cast iron: The most common variety, recognized by its dull gray fracture surface. It's relatively easy to machine and weld, which is why most guides focus on this type.

• Ductile (nodular) iron: Contains added magnesium that forms spherical graphite structures, increasing strength and flexibility. It's tougher than gray iron and more weld-friendly.

• Malleable iron: Made by heat-treating white iron, this type is less brittle and more forgiving. It's used in many industrial components where some ductility is needed.

• White cast iron: Extremely hard and brittle, this type contains almost no graphite. Welding it is extremely challenging, and it's usually avoided unless absolutely necessary.


Understanding these differences is the first step to a successful cast iron weld. Misidentifying your base metal can lead to cracking, weak joints, or wasted materials. We always recommend taking time upfront to figure out what you're dealing with

The Weldability of Different Types of Cast Iron

Gray, ductile, and malleable irons can be welded with proper procedures. However, white cast iron resists most welding methods and typically cracks immediately under heat. Gray iron is the easiest, while ductile and malleable iron require careful technique and proper filler materials.

Why Cast Iron Is Hard to Weld

With 3–4% carbon (about ten times more than mild steel), cast iron is incredibly brittle. During welding, rapid heating and cooling magnify this brittleness, especially in the heat-affected zone, leading to cracking.

Thermal stresses during the welding process only worsen the risk. Impurities like sulfur and phosphorus, plus trapped gases from casting, can lead to porosity and internal cracking.

Additionally, cast iron often has absorbed oils or lubricants, which can vaporize during welding and create defects.

Choosing the Right Cast Iron Welding Process

Stick (SMAW)

Stick welding, also known as Shielded Metal Arc Welding, is one of the most accessible and effective methods for cast iron repair. It's rugged, portable, and doesn't require shielding gas, which makes it a go-to for field repairs or workshops with minimal setup.

Electrodes like ENi99 (pure nickel) offer superior machinability, while ENiFe-CI (nickel-iron, or 55% nickel) strikes a balance between strength and cost.

TIG

TIG (GTAW) welding is all about precision, which makes it good for a variety of metals, such as aluminum welding or stainless steel welding. If you're working with thin castings, small parts, or anything that's been machined to tight tolerances, using a TIG welder gives you total control over heat input and arc placement.

You'll need a high-quality nickel-based filler, steady hands, and a good understanding of heat management, because overheating even a small section can lead to cracking.

TIG doesn't tolerate impurities well, so prep work is critical. But the payoff? Super clean, beautiful welds that are strong and machine-ready.

Oxy‑Acetylene & Brazing

When fusion welding feels too risky, brazing steps in as the hero. Oxy-acetylene welding with bronze filler is a time-tested method for repairing cast iron with minimal structural stress. The flame's lower temperature reduces the chance of cracking, and the resulting joints are often leak-proof and corrosion-resistant.

This process shines in applications like sealing water jacket cracks or repairing old plumbing parts. It's also more forgiving of contaminants, making it a solid choice when you're working with oily, weathered castings that resist full cleaning.

MIG / Flux‑cored

MIG (GMAW) and flux-cored arc welding (FCAW) are faster, semi-automated options that can be used on cast iron, but they come with caveats.

These methods work best with short-circuit transfer and low heat input settings to prevent thermal shock.

You'll want to pair the process with nickel or stainless steel wire, like Techalloy 55, and definitely preheat the part to minimize stress.

MIG welders are great for production environments or when you want to cover a lot of ground quickly, but the risk of porosity and cracking is higher if you're not careful with prep and technique.

Which Filler Materials & Electrodes to Use for Cast Iron Welding

Choosing the right filler material can mean the difference between a clean, machinable weld and a cracked, unusable mess. The electrode or rod you use should match not just the type of cast iron, but also the desired finish, strength, and budget.

• Pure nickel rods (ENi-CI / Tech-Rod 99): These are the top-tier choice for quality and machinability. Welds are soft, ductile, and easy to machine, making them ideal for precise, post-weld shaping. They're also the most forgiving, but they come at a premium cost.

• Nickel-iron rods (ENiFe-CI / Tech-Rod 55): A cost-effective and versatile option. These rods offer strong, crack-resistant welds and moderate machinability. Great for structural repairs where appearance isn't everything, but durability is.

• Cast iron rods (ESt): These are the budget option. They deposit a hard, brittle weld that is difficult (or impossible) to machine. Use them only when cost is a factor and machining isn't required. From our testing, these are best left to non-critical fixes.

• Bronze (brazing rods): Ideal for oxy-acetylene brazing. These rods don't fuse the base metal but instead create a strong, flexible bond. They're excellent for sealing cracks and are far less prone to causing thermal stress.

• Stainless steel wire or rods: An option for MIG or TIG welding, stainless fillers are strong but shrink more on cooling, increasing the risk of cracking. They can work, but only with precise heat control and good technique.


Always consider the end-use of your part and whether you'll need to machine it afterward. With the right filler, your cast iron weld can go from brittle risk to bulletproof fix.

Essential Prep Steps for Cast Iron Welding

Identifying Alloy Type

Before you even strike an arc, you've got to know what you're working with. Cast iron isn't one-size-fits-all, and welding success hinges on identifying the correct alloy.

A spark test is a tried-and-true method for field identification. Gray iron throws short, reddish sparks; ductile and malleable irons spark longer and brighter; white iron barely sparks at all.

When in doubt, consult documentation or manufacturer specs if available.

Cleaning & Removing Contaminants

Cast iron is a porous metal that loves to soak up oil, grime, and grease over time, especially if it's from an engine or industrial setting. That means prep is everything.

Start by grinding or wire brushing the weld area down to clean, bright metal. Next, hit it with a degreaser (non-chlorinated, always) to lift out embedded contaminants.

We often recommend heating the part slightly to sweat out deep-set oil, then scrubbing again.

Want a pro tip? Run a low-amp test bead on a scrap or side area. If you see bubbling or porosity, you've still got cleaning to do.

Preheating

Cast iron hates temperature swings. That's why preheating is often essential. Bringing the whole part, or at least the area around the weld, up to the correct temperature helps reduce thermal shock and relieves stress in the heat-affected zone. This will typically be a minimum of  300°F, but can range up to 1200°F depending on the type of cast iron.

Use a propane torch, oven, or even a heat blanket, depending on the size and shape of your part.

For smaller or less critical repairs, cold welding with very short beads and generous cooling time between passes can be effective too. But if you want consistency and durability, preheat like a pro.

How to Do Cast Iron Welding

The difference between a cracked mess and a solid repair often comes down to technique. Whether you're using stick, TIG, or brazing, the fundamentals remain the same: short welds, minimal heat input, and careful sequencing.

Follow these key steps for a successful cast iron weld:

1. Bead placement: Keep your weld beads short, usually no more than an inch at a time. This prevents localized overheating and reduces the risk of cracking.

2. Short stitch welds: Instead of running long continuous beads, weld in short “stitches” with ample pauses in between. This helps control expansion and contraction in the metal.

3. Peening: After each short bead, gently strike the weld with a ball-peen hammer while it's still warm. This relieves internal stresses and helps prevent shrinkage cracks.

4. Heat control: Use low amperage settings to limit heat input. Too much heat, too fast, is a surefire way to introduce stress fractures.

5. Sequencing: Weld in a staggered, segmented fashion across the part. Jumping around the workpiece allows heat to distribute evenly and keeps warping in check.

6. Monitor interpass temperature: Don't let the part cool down too much between welds. Keep it within the safe temperature range (typically 300–500°F) if you're not cold welding.

Conclusion

Welding cast iron can be challenging, but with the right knowledge, tools, and technique, it's doable. Understanding the different types of cast iron, using the proper filler materials, carefully prepping your workpiece, and controlling heat throughout the process are all essential steps to getting strong, reliable results.

From short stitch welds and peening to post-weld cooling and machining, every stage matters when it comes to working with this brittle, carbon-heavy metal.

After years in the industry and extensive product testing, we've seen what works, and we've built our gear around that knowledge. Ready to tackle your next cast iron project? Grab everything you need from Badass Welding Products and get welding with confidence.
