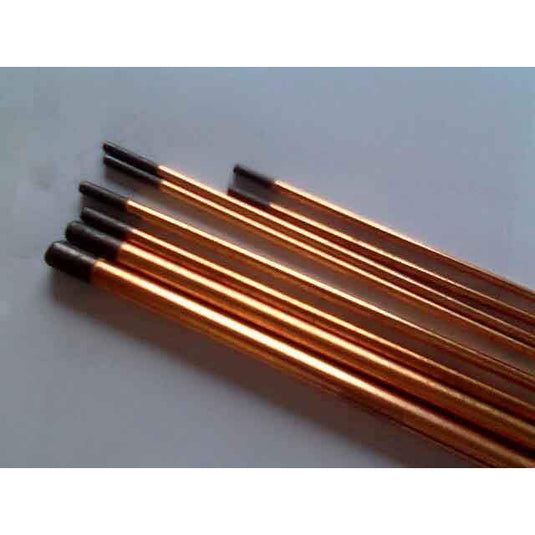

Arcair Gouging Electrodes, Pointed Copperclad DC, 1/4" x 12" - 50 Pcs - 22043003
$30.99
$35.99
Arcair Carbon Arc Gouging Rod, 1/4" x 12"
POINTED COPPERCLAD DC ELECTRODESA standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.POINTED PLAIN DC ELECTRODESGeneral purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.POINTED COPPERCLAD AC ELECTRODESDesigned for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.FLAT COPPERCLAD DC ELECTRODESSpecially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.HALF ROUND COPPERCLAD DC ELECTRODESVersatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining
50 Pack

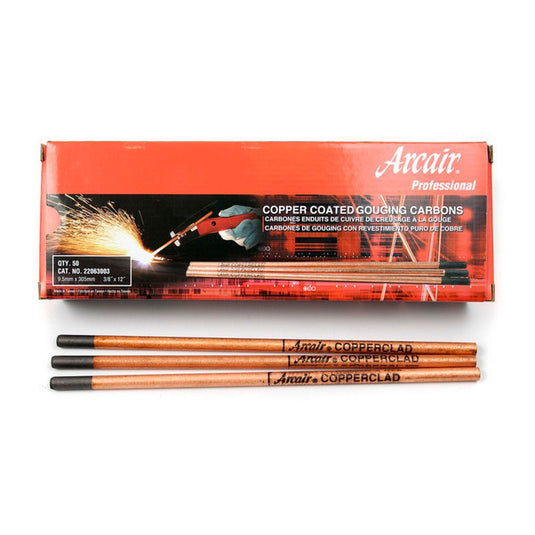

Arcair Gouging Electrodes, Pointed Copperclad AC, 3/8 x 12 - 50 Pcs 20063003
$48.58
$44.99
Arcair Gouging Electrodes, Pointed Copperclad AC, 3/8 x 12 - 50 Pcs 20063003
POINTED COPPERCLAD DC ELECTRODESA standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.POINTED PLAIN DC ELECTRODESGeneral purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.POINTED COPPERCLAD AC ELECTRODESDesigned for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.FLAT COPPERCLAD DC ELECTRODESSpecially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.HALF ROUND COPPERCLAD DC ELECTRODESVersatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining

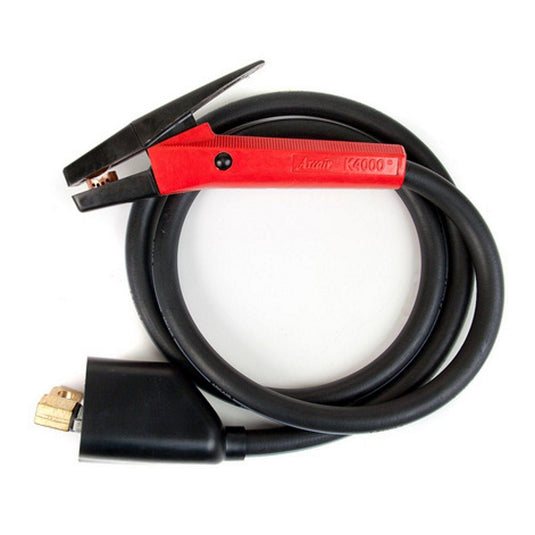

Arcair K4000 Air Carbon-Arc Gouging Torch & Cable, Heavy Duty, (1000A, 80PSI / 25CFM, 10FT)
$733.32
$847.44
Arcair Professional Angle-Arc® K4000 is part of the manual gouging torch & cable assemblies offered by the industry leader in the air carbon-arc products. It's the most copied manual gouging torch & cable in the world.
Description
Victor Arcair Extreme Heavy Duty torch and cable set work efficiently with the natural angles and movements of the arm and wrist.
Reliable Torch Design
Victor has been the leader in the industry for over 60 years. The 15 degree torch angle offers operator comfort. Lighter than previous versions to minimize fatigue. Only weighs 7.6 lbs. Swivel cable creates less strain for the user.
Cable Hose
10ft of high quality cable hose is included with this package. This cable hose offers high heat and abrasion resistance and is non conductive.
Specifications
Flow Rate
708 l/min ( 22 cfh )
Air Requirement
5.6 kg/cm² ( 80 psi )
Arcair K3000 Air Carbon-Arc Gouging Torch Only, Medium Duty, (600A, 80PSI / 22CFM) 01065001
$285.00
$381.00
Arcair K3000 Air Carbon-Arc Gouging Torch Only, Medium Duty, (600A, 80PSI / 22CFM)
01065001
IMPROVED TORCH AIR FLOW - More efficient use of air supply. Improved metal removal.
FOUR HOLE HEAD ASSEMBLY - Optimizes air flow to the arc. Efficiently cleans slag from groove edge.
AIR ASSIST POSITIVE AIR SHUT-OFF - Minimizes air supply unit cycling on and off. Allows torch usage when air supply is marginal.
IMPROVED CABLE ELECTRICAL CONDUCTION - Improves cable service life. Decreases heat build up in cable and torch.
SUPERIOR OUTER CABLE COVER - Durable cover for improved cable life in a harsh environment. Resists breakdown due to exposure to heat produced by gouging.
INSULATED CONNECTION BOOT & HOOK-UP KIT - Makes for easy torch hook-up. Virtually eliminates the possibility of arcing when contacting electrically hot parts.
Arcair Type Air Arc Rods 5/16" x 12"
$36.00
Weldcote Gouging Carbons for Air Arc Cutting And Gouging Purposes.A high grade, all purpose copperclad pointed gouging electrode. It's controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.50 Pack Box
Arcair Type Air Arc Rods 1/4" x 12"
$29.00
Weldcote Gouging Carbons for Air Arc Cutting And Gouging Purposes.A high grade, all purpose copperclad pointed gouging electrode. It's controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.50 Pack Box
Arcair Slice Battery Pack, 120V AC 50/60 Hz - 63991041
$2,639.72
SLICE Battery Pack –110 V AC 60 Hz 63991041
This unit sucks, dont buy it, Esab wont warranty the battery.
Go anywhere and cut, burn, or pierce virtually any metallic, non-metallic or composite material with this exothermic cutting pack.
Comes with all the necessary equipment and cutting rods required to do cutting when combined with standard industrial grade oxygen to support the exothermic reaction and to remove the molten metal.
Product Features:
New heavy-duty storage case to hold/store the equipment when not in use.
Improved torch handle & rubber shield to improve the operators grip and provide protection from molten spray when piercing.
Improved striker assembly that incorporates a slide mechanism that allows the operator to only expose a small portion of the ignition bar (copper) which increases the life of the striker copper bar.
Battery Pack Features:
Improved battery box with improved features over previous model
Faster recharging of dead battery
Better visual "gas gauge" indicating battery condition
Over-charging safe guard
Industries
Industrial and General Fabrication
Mining
Repair and Maintenance
Steel Erectors

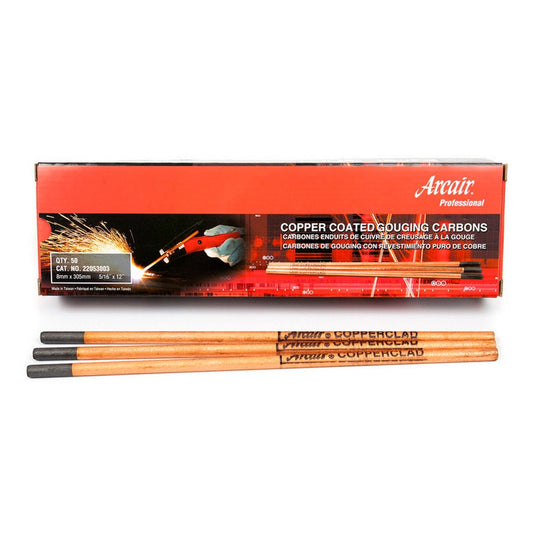

Arcair Gouging Electrodes, Pointed Copperclad DC, 5/16 x 12 - 50 Pcs 22053003
$39.04
$36.15
Arcair Gouging Electrodes, Pointed Copperclad DC, 5/16 x 12 - 50 Pcs 22053003
POINTED COPPERCLAD DC ELECTRODESA standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.POINTED PLAIN DC ELECTRODESGeneral purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.POINTED COPPERCLAD AC ELECTRODESDesigned for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.FLAT COPPERCLAD DC ELECTRODESSpecially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.HALF ROUND COPPERCLAD DC ELECTRODESVersatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining
50 Pack

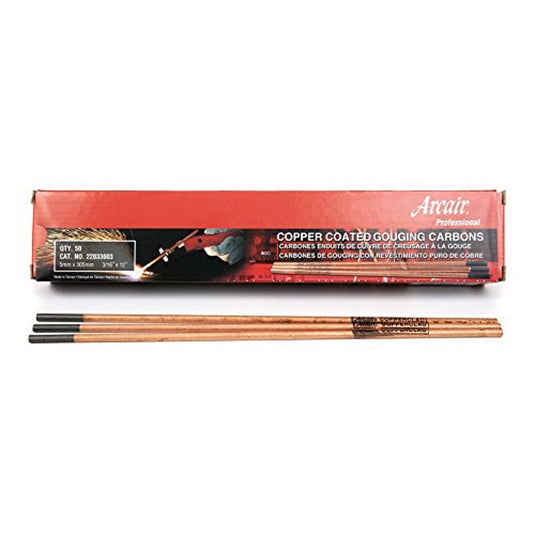

Arcair Gouging Electrodes, Pointed Copperclad DC, 3/16 x 12 - 50 Pcs 22033003
$28.99
$34.99
Description
POINTED COPPERCLAD DC ELECTRODESA standard, all purpose gouging electrode. Its controlled copper coating improves electrical conductivity (for more efficient, cooler operation) and helps maintain electrode diameter at the point of the arc.POINTED PLAIN DC ELECTRODESGeneral purpose electrodes without the copper plating to avoid any chance of copper contamination in the base material. Same high quality blend of carbon and graphite used in other electrodes.POINTED COPPERCLAD AC ELECTRODESDesigned for use with A.C. power supplies. Rare earth material is added to the electrodes to stabilize the arc and enhance the operating characteristics. 305 mm (12 in.) long.FLAT COPPERCLAD DC ELECTRODESSpecially designed for close tolerance metal removal and scarfing applications. Excellent for general gouging applications, removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.HALF ROUND COPPERCLAD DC ELECTRODESVersatility of having both a round and flat electrode for the various gouging applications. Excellent for removing weld crowns, repairing or making dies, removing temporary welded dogs, and scarfing billets.
Designed specifically for the air carbon-arc process
Contain a precise formulated blend of carbon and graphite
Produces the most efficient metal removal performance in today’s market
Superior metal removal rates, cool operation, and uniform diameters
Ideal for a broad range of applications
Creating u-grooves for weld joint
Removing old welds
Gouging out cracks
Cleaning and repairing castings
Removing hard surface material
Rough machining
50 Pack
