Everlast Typhoon 330 AC/DC TIG Welder

Everlast Typhoon 330 AC/DC TIG Welder TYP-330

The Everlast Typhoon 330 is a 330 amp AC/DC TIG welder with a 40% duty cycle at maximum output. Large 5.1" HD LCD screen features a sharp, high contrast layout of functions and parameters on a single screen layout, without complicated and hard to access hidden menus. New functions of amplitude control in AC and split positive and negative wave form control offer astounding advances of tungsten life, arc quality and stability over older wave form technology. The Typhoon has five AC wave forms, Advanced Square, Soft Square, Triangular, Sine and Trapezoidal wave forms, which offer the maximum level of puddle and bead control while welding Aluminum. With expanded memory option up to 30 programs and the ability to lock in programmed settings to prevent tampering, the unit helps customers maintain quality control levels where multiple users are present or where a WPS is in place. Other performance-driven features such as DC pulse wave form shaping and a new type of solid state HV/HF starting for TIG secures the Typhoon 330's place as a premier, next level TIG welder in all metals categories.

The Typhoon 330 is a premier TIG welder, but it's also a top-level stick welder with features such as AC/DC stick output, adjustable AC balance and Frequency. Has E6010 capability as well and works well in short and medium arc length conditions. However, this unit is not suited for long arc E6010 or carbon arc gouging applications. The unit has up to 275 Amp Stick output at 35% duty cycle. This Typhoon is capable of welding on 240 1phase or 3 phase input power without impacting the duty cycle of the machine. The Typhoon 330 has an industry best five year factory warranty.

Process

• AC/DC TIG (GTAW)
• Stick (SMAW)

Features

• Digital IGBT Inverter MIG Power design makes it one of the most powerful, yet smallest in its class.

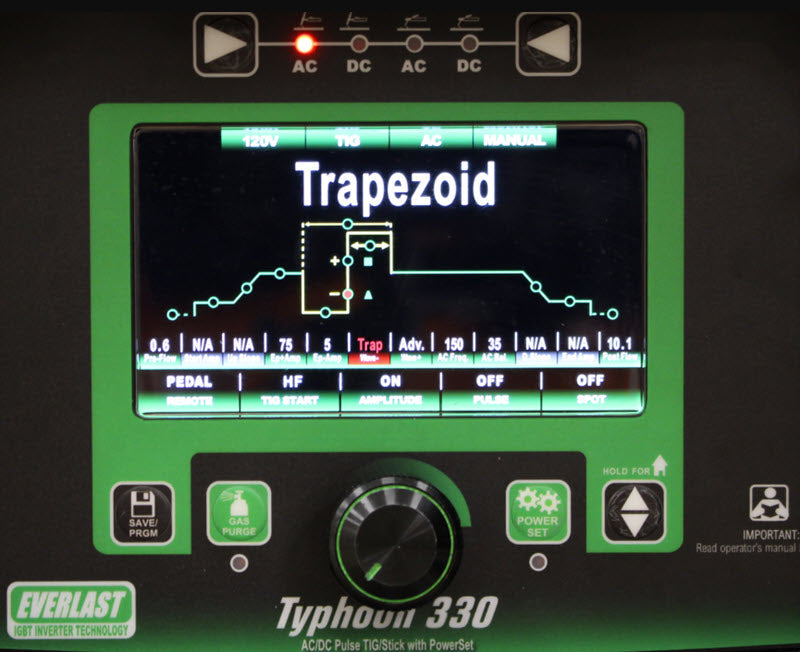

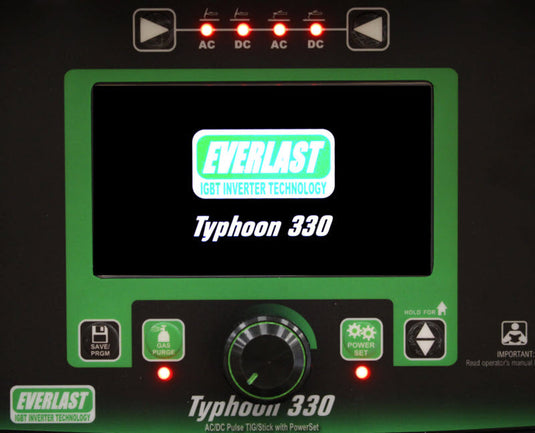

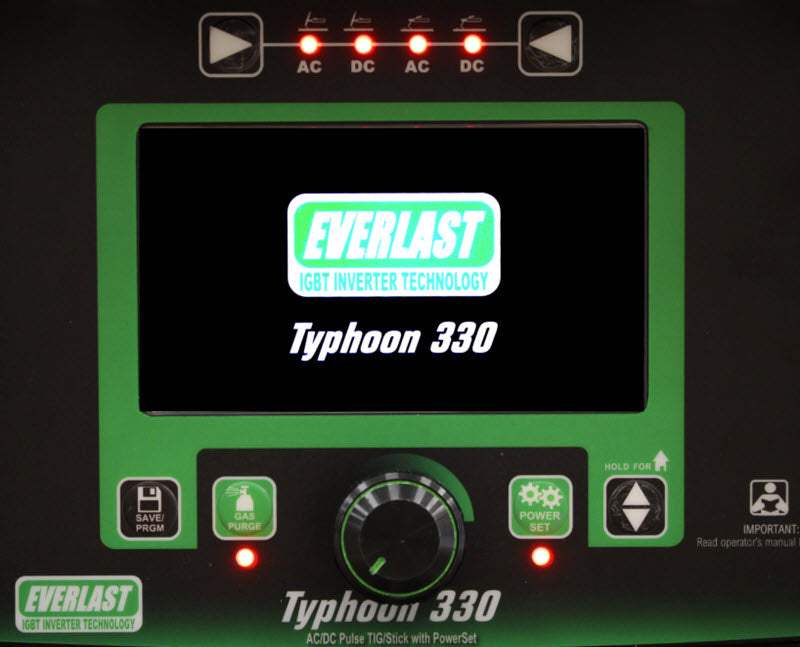

• Large Digital Color Display makes the main settings stand out at a distance so you can always see them at a glance from a distance. Color coding and graphics help you quickly identify and set parameters.

• 5 AC Wave forms: Adv. Square, Soft Square, Trapezoid, Triangle, and Sine.
• Split AC Wave form control technology: Select wave form shape of individual half-waves in AC.
• Independent Amplitude Control over EN and EP Amps in AC.
• DC Wave form shaping for more control.
• DC Pulse up to 999.9 Hz.  AC Pulse up to 400 Hz.
• AC Adv. Pulse (Mixed AC/DC pulse up to 10 Hz) increases Aluminum penetration similar to 350A or greater of standard machines.
• AC frequency up to 400Hz.
• True low amp starts measured at 2A DC and 3A AC.
• 5 Year Parts and Labor Warranty Simply the best warranty in the business. Who else offers this without paying extra, or giving you a long list of exclusions?

• Typhoon 330 Power Source
• Wired Foot Pedal 25 ft.
• 9 Series Air-Cooled Rigid Neck Torch 12 ft.
• 20 Series Water-Cooled Flex Head Torch 12 ft.

• 300A Stick Electrode Holder with 10 foot cable
• 350A Bronze Work Clamp with 10 foot cable
• (2) TIG Consumable Starter Kits. Tungsten not included
• Pigtail adapter 240V to 120V
• Argon Regulator, floating ball type with hose
