Everlast Typhoon 500 AC/DC TIG Welder TYP-500

Everlast Typhoon 500 AC/DC TIG Welder TYP-500

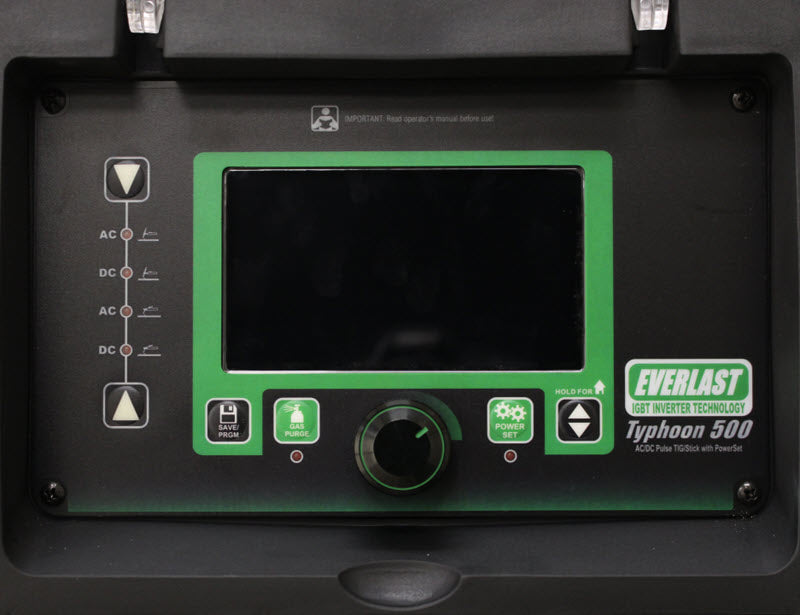

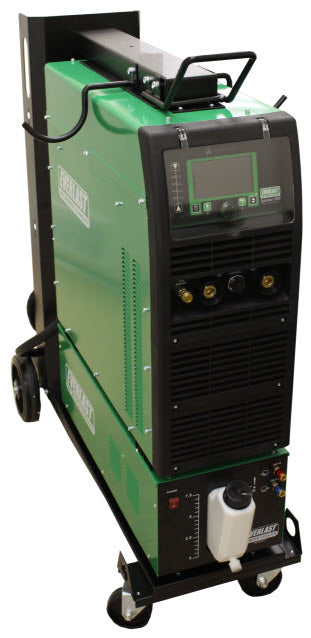

The Everlast Typhoon 500 is a 500 amp AC/DC TIG Welder that delivers up to 400A on single phase 240V and 500A on three phase 480V power. The large HD Color LCD screen features the ability to see and set all the parameters on a single screen without endless hidden menus or complicated series of button presses. AC advanced pulse though with a mixture of both AC and DC negative allows you to achieve the penetration of a machine with 500A or more. While the Typhoon has all the standard wave forms including Advanced Square, Soft Square, Triangular and Sine wave, it also has the industry's first Trapezoid wave form This gives a whole new feel and level control while welding Aluminum. As a stick welder, the unit puts out one of the smoothest DC arcs you will find, which is perfectly suited for E7018 and similar rods. Stick weld with a 315A output on Phase 1 240V and 400A output while operating on 3 phase 480V. The Typhoon 500 has an industry best five year factory warranty.

Process

• AC/DC TIG (GTAW)
• Stick (SMAW)

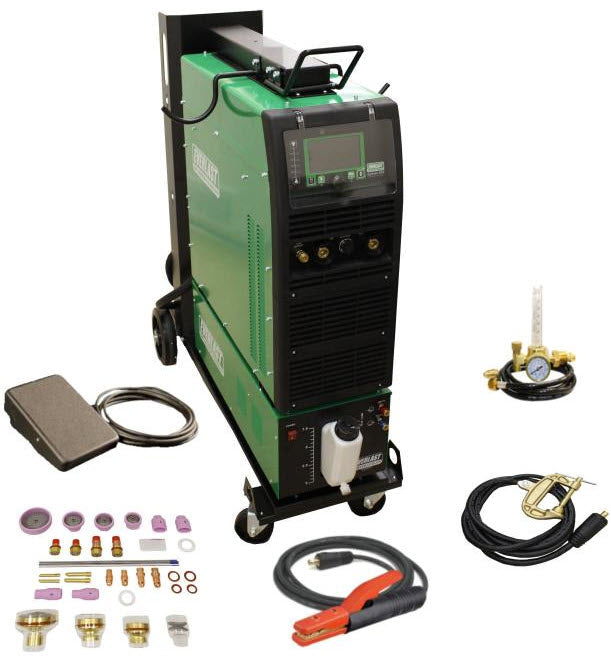

• PowerCart 300 with accessory holders
• PowerCool 400 Water Cooler
• NOVA 25 ft. wired Foot pedal
• NOVA 12.5 ft. 26 Series Air-Cooled Torch
• CK 12.5 ft. 18 Series Water-Cooled Torch
• 400A Stick Electrode Holder with 10 foot cable
• 500A Bronze Work Clamp with 10 foot cable
• TIG Consumable Starter Kit. Tungsten not included
• Argon Regulator, floating ball type with hose
